Seven platform sizes
Working envelopes from 200 × 200 × 50 mm to 600 × 500 × 100 mm.
Benchtop Dispensing Robot
Aurexis Automation · AX-7000N/S

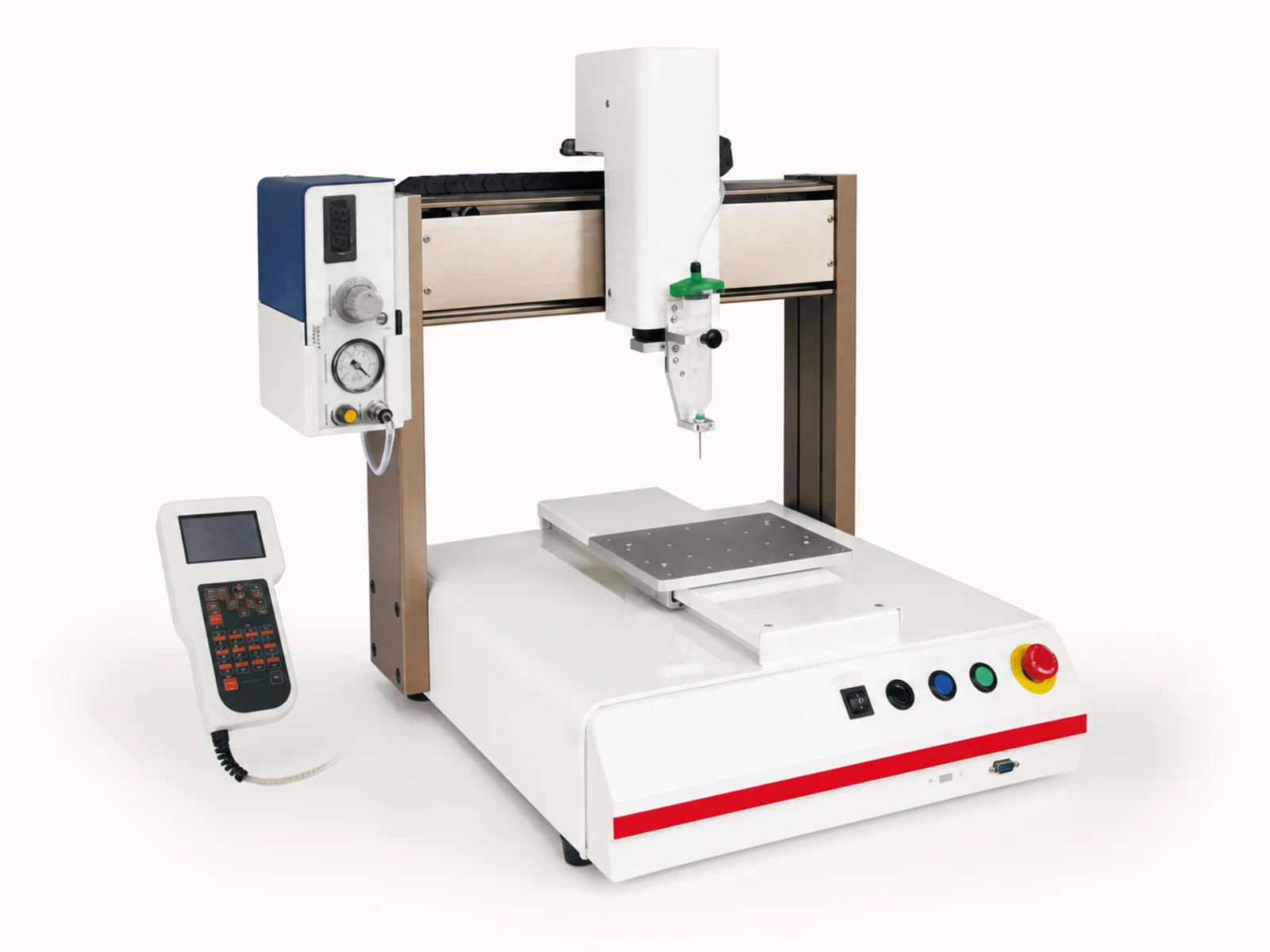

AX-7000N/S Benchtop Dispensing Robot Series
Seven three-axis platforms with teach-pendant programming and configurable dispensing heads.
- Working envelope
- 200 × 200 × 50 to 600 × 500 × 100 mm
- Repeatability
- ±0.01 to ±0.02 mm/axis
- Program capacity
- ≥100 × 4,000 points
- I/O
- 8 inputs / 8 outputs
Product overview
Built around the process, not a generic platform.
The AX-7000N/S series is a family of teach-pendant programmed benchtop dispensing robots for dot, line, arc and three-dimensional path applications. Seven travel and drive configurations cover compact workpieces through larger processing areas. Programs can be set up from the controller without a separate production PC.
Engineering advantages
Designed for stable, maintainable production
N and S drive options
N models use stepper-based motion; S models use servo and precision ball-screw transmission.
Path programming
Supports dots, lines, arcs and three-dimensional paths.
Production recipe storage
Stores at least 100 programs with 4,000 points per program.
Model-specific features
AX-7200N
Compact platform
200 × 200 × 50 mm envelope for smaller workpieces and cost-sensitive lines.
AX-7300N
Standard N configuration
300 × 300 × 100 mm platform with stepper-based motion for general dispensing.
AX-7400N
Mid-size N configuration
400 × 400 × 100 mm envelope balancing coverage and cycle requirements.
AX-7500N
Large N configuration
500 × 500 × 100 mm working area for larger fixtures and parts.
AX-7600N
Maximum N travel
600 × 500 × 100 mm is the largest N-series envelope listed in the manual.
AX-7300S
Servo S configuration
300 × 300 × 100 mm platform with 15/8 kg Y/Z load and ±0.01 mm repeatability.
AX-7400S
Higher-load S configuration
400 × 400 × 100 mm platform with servo and precision ball-screw transmission.
Technical data
Model selection and performance
Model-level differences are separated below; shared and supplementary parameters follow the model cards.
Model-level specifications
AX-7200N
- Work envelope
- 200 × 200 × 50 mm
- Y/Z load
- 5 / 3 kg
- XY/Z speed
- 500 / 350 mm/s
- Repeatability
- ±0.02 mm/axis
- Machine size
- 385 × 380 × 500 mm
- Machine weight
- 23 kg
AX-7300N
- Work envelope
- 300 × 300 × 100 mm
- Y/Z load
- 11 / 6 kg
- XY/Z speed
- 800 / 350 mm/s
- Repeatability
- ±0.02 mm/axis
- Machine size
- 485 × 505 × 610 mm
- Machine weight
- 34 kg
AX-7400N
- Work envelope
- 400 × 400 × 100 mm
- Y/Z load
- 11 / 6 kg
- XY/Z speed
- 800 / 350 mm/s
- Repeatability
- ±0.02 mm/axis
- Machine size
- 585 × 610 × 610 mm
- Machine weight
- 41 kg
AX-7500N
- Work envelope
- 500 × 500 × 100 mm
- Y/Z load
- 11 / 6 kg
- XY/Z speed
- 800 / 350 mm/s
- Repeatability
- ±0.02 mm/axis
- Machine size
- 685 × 700 × 610 mm
- Machine weight
- 52 kg
AX-7600N
- Work envelope
- 600 × 500 × 100 mm
- Y/Z load
- 11 / 6 kg
- XY/Z speed
- 800 / 350 mm/s
- Repeatability
- ±0.02 mm/axis
- Machine size
- 785 × 700 × 610 mm
- Machine weight
- 56 kg
AX-7300S
- Work envelope
- 300 × 300 × 100 mm
- Y/Z load
- 15 / 8 kg
- XY/Z speed
- 500 / 350 mm/s
- Repeatability
- ±0.01 mm/axis
- Machine size
- 585 × 610 × 610 mm
- Machine weight
- 50 kg
AX-7400S
- Work envelope
- 400 × 400 × 100 mm
- Y/Z load
- 15 / 8 kg
- XY/Z speed
- 500 / 350 mm/s
- Repeatability
- ±0.01 mm/axis
- Machine size
- 685 × 700 × 610 mm
- Machine weight
- 55 kg
Shared and supplementary parameters
| Motion paths | Three-axis dots, lines, arcs and spatial paths |
|---|---|
| Controller | Teach pendant; 32-bit processing; LCD; CF card |
| Recipe storage | At least 100 programs × 4,000 points |
| Interfaces | 8 inputs / 8 outputs; RS232 |
| Input power | AC 100–230 V; 300 W |
| Operating environment | 10–40 °C; 20–90% RH, non-condensing |
Applications & options
Typical applications
- SMT solder-paste dispensing
- Component encapsulation and sealing
- Conductive and UV adhesive dispensing
- Semiconductor and crystal-component bonding
Optional modules
Automatic needle calibration
Corrects needle position after changeover.
Multi-head fixture
Supports dual- or triple-head process configurations after engineering review.
Fluid delivery package
Select from syringe, diaphragm, needle, rotary, pneumatic jet or piezo jet dispensing.
Resources & support
Prepare the project with the right inputs
Delivery and service
Selection is confirmed against the workpiece, fluid, viscosity, deposit geometry and cycle requirement. Final specifications require engineering sign-off.
FAQ
Questions before selection
How are the N and S models different?
N models focus on broad size coverage; S models add higher load capacity, servo drive and ±0.01 mm repeatability.
Can the robot run without a PC?
Programs are created and stored through the teach pendant; a production PC is not required for standard operation.
Which valve should be selected?
Valve selection depends on viscosity, filler content, target deposit and cycle time.
