Non-contact dispensing
Jetting reduces unnecessary Z-axis motion between deposits.
Pneumatic Jet Valve
Aurexis Automation · AX-J6000/6200

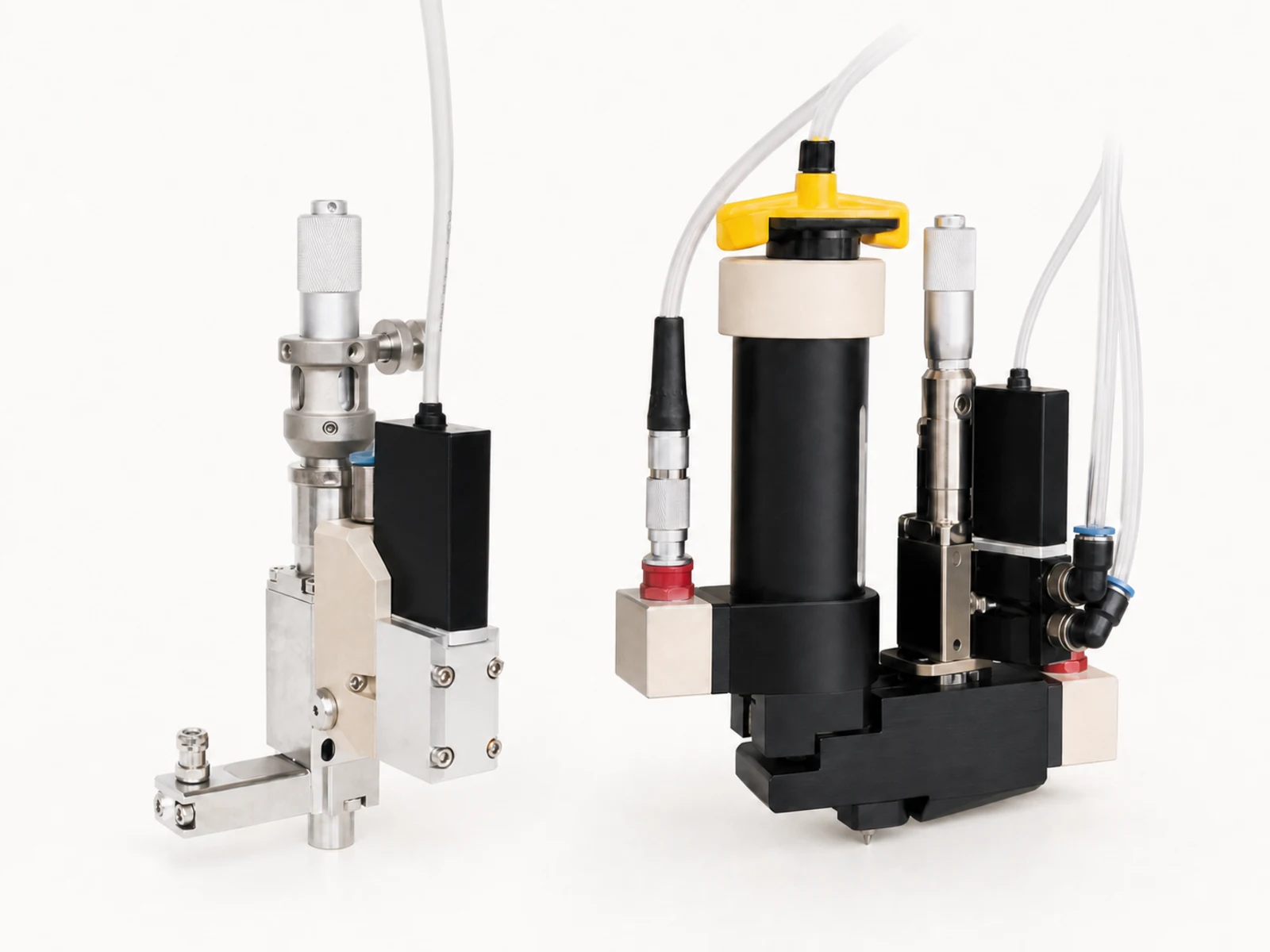

AX-J6000/6200 Pneumatic Jet Valve Series
Non-contact jetting for standard and heated adhesive processes.
- Maximum frequency
- 200 Hz
- Minimum dot diameter
- Approx. 0.3 mm
- Minimum jet volume
- 0.002 µL
- Body envelope
- 24 × 90 × 160 mm
Product overview
Built around the process, not a generic platform.
The AX-J6000/6200 family uses pneumatic actuation and solenoid timing for non-contact dispensing without a Z-axis touch-off move. AX-J6000 targets general adhesives, lubricants and inks; AX-J6200 adds a heated material path and 30 cc cartridge support for PUR and hot-melt processes.
Engineering advantages
Designed for stable, maintainable production
Standard and heated variants
Select general-fluid or PUR/hot-melt configuration.
Compact machine integration
24 × 90 × 160 mm envelope supports benchtop platforms and integrated cells.
Service-oriented design
Modular valve components simplify removal and maintenance.
Model-specific features
AX-J6000
Standard-fluid jetting
Non-contact jetting for adhesive, lubricant, water-based solvent, polymer, ink and silicone.
AX-J6200
Heated PUR / hot-melt jetting
Heated fluid path and 30 cc cartridge for PUR and hot-melt adhesive.
Technical data
Model selection and performance
Model-level differences are separated below; shared and supplementary parameters follow the model cards.
Model-level specifications
AX-J6000
- Maximum frequency
- 200 Hz in performance table; overview also states 250 Hz
- Minimum drive pressure
- 0.6 MPa
- Particle / ambient limit
- ＜20 µm; 0–45 °C
- Timing / accuracy
- 3 ms opening; 2 ms closing; 2% at same pressure and temperature
- Structure
- 24 × 90 × 160 mm; 500 g; SUS304 wetted path; up to 75 °C; 100 W heater
AX-J6200
- Drive voltage / air
- DC 24 V; 0.6–0.8 MPa
- Cartridge pressure / volume
- 0–0.4 MPa; 30 cc
- Temperature
- Valve body ≤100 °C; nozzle ambient to 130 °C
- Structure / weight
- 24 × 90 × 160 mm; 0.55 kg; aluminium body; SUS304 fluid path
Shared and supplementary parameters
| Jet mode | Non-contact pneumatic jetting |
|---|---|
| Series envelope | 24 × 90 × 160 mm |
| Minimum dot / volume | Approx. 0.3 mm; 0.002 µL |
| Frequency note | Overview states 250 Hz while the performance table states 200 Hz; engineering confirmation required |
Applications & options
Typical applications
- UV and epoxy jet dispensing
- Grease, silicone and ink micro-deposits
- PUR and hot-melt adhesive jetting
- Small seams and uneven workpiece surfaces
Optional modules
Heater and temperature-control package
Configure the heated fluid path for PUR or hot-melt adhesive.
30 cc cartridge assembly
Provides a compact heated material supply.
Nozzle and seal set
Match particle size, chemistry and target deposit.
Resources & support
Prepare the project with the right inputs
Delivery and service
Selection is confirmed against the workpiece, fluid, viscosity, deposit geometry and cycle requirement. Final specifications require engineering sign-off.
FAQ
Questions before selection
Why use jetting instead of a contact needle?
Jetting can deposit without touching the workpiece and reduces repeated Z-axis travel.
Is the maximum frequency 200 or 250 Hz?
The source overview states 250 Hz while the performance table states 200 Hz; 200 Hz is used here until engineering confirmation.
Can it dispense filled fluids?
Particle size, abrasiveness and settling must be reviewed; the standard page lists particles below 20 µm.
