Semi-automatic station
The operator handles the workpiece while the machine feeds and drives screws.
Simple single/dual-spindle screwdriving
Wansuda (source manufacturer) · WSD-101DZ / WSD-102SZ
WSD-101DZ/102SZ Simple Single/Dual-Spindle Screwdriving Series
Single- or dual-spindle vertical fastening for stable, fixture-located small workpieces.
- Screw range
- M1.2–M5 custom options available
- Workpiece height
- 10–150 mm
- Supplier-rated positioning
- ±0.1 mm
- Supplier-rated cycle
- Approx. 0.8–1 s/cycle
Product overview
Built around the process, not a generic platform.
This series combines a feeder, touchscreen controller, electric driver and vertical fastening mechanism as a simple semi-automatic station. The operator loads and unloads the workpiece while the equipment feeds and drives the screws.
The WSD-101DZ is the single-spindle configuration and the WSD-102SZ is the dual-spindle configuration. The two later chat videos show both layouts, so they are separated by model on one series page.
Engineering advantages
Designed for stable, maintainable production
Single or dual spindle
WSD-101DZ is single-spindle; WSD-102SZ is dual-spindle.
Touch control
The supplier sheet specifies a programmable microcontroller and touchscreen.
Repeatable location
A fixed fixture constrains fastening height for stable, repeated production.
Model-specific features

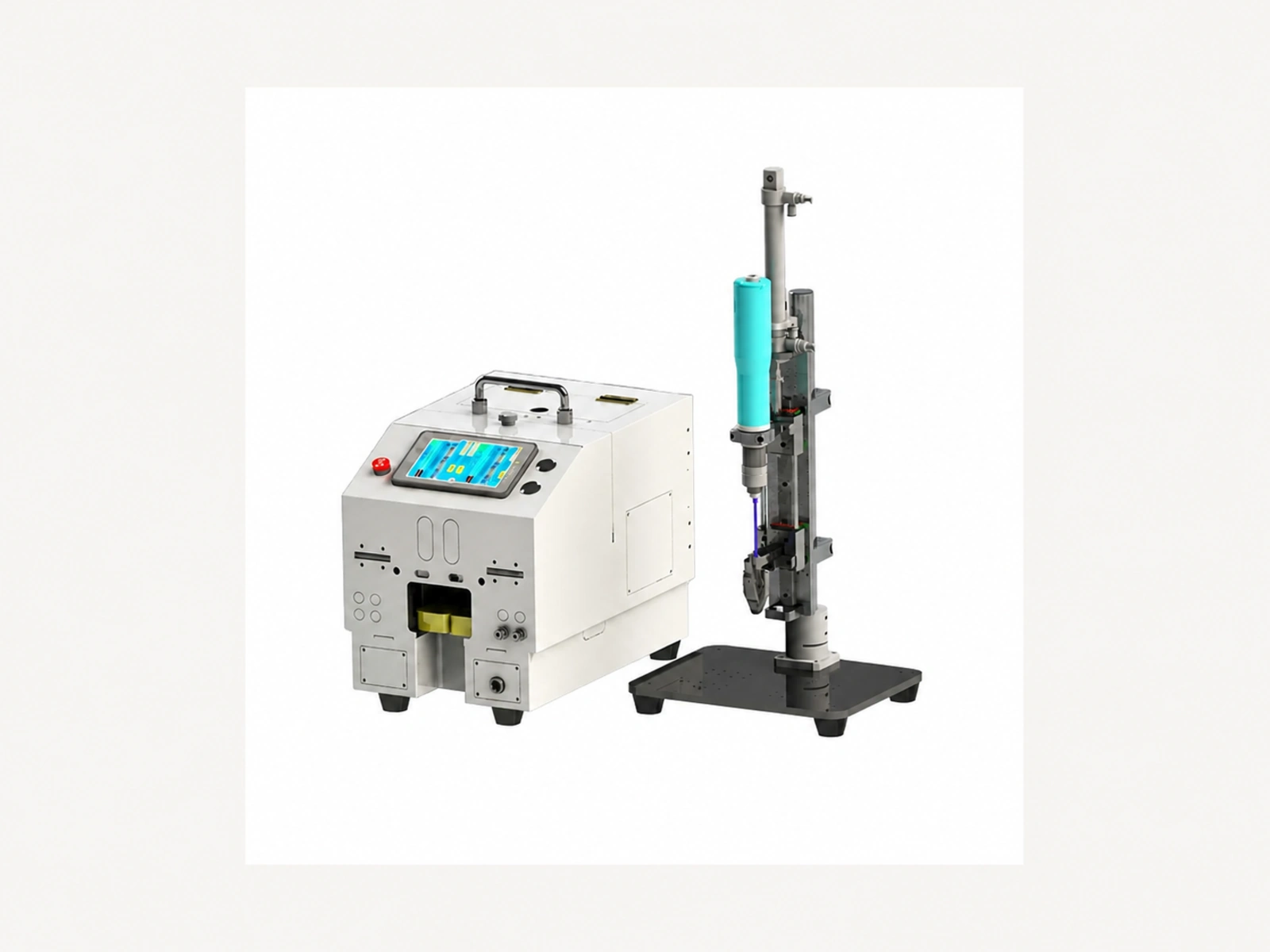

WSD-101DZ
Single-spindle fastening
For one point or sequential fastening.
WSD-102SZ
Dual-spindle fastening
For two stable points driven together.
Technical data
Model selection and performance
Model-level differences are separated below; shared and supplementary parameters follow the model cards.
Model-level specifications

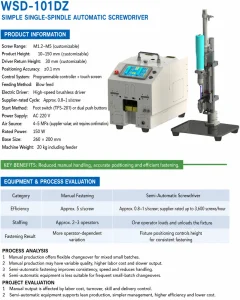

WSD-101DZ
- Spindles
- 1
- Base size
- 260 × 200 mm
- Machine weight
- 20 kg including feeder
- Supplier-rated output
- Approx. 0.8–1 s/screw; up to 3,600 screws/hour

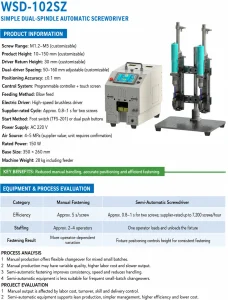

WSD-102SZ
- Spindles
- 2
- Spindle pitch
- 50–160 mm adjustable; custom options available
- Base size
- 350 × 260 mm
- Machine weight
- 28 kg including feeder
- Supplier-rated output
- Approx. 0.8–1 s/cycle; up to 7,200 screws/hour
Shared and supplementary parameters
| Fastener range | M1.2–M5; custom options available |
|---|---|
| Workpiece height | 10–150 mm; custom options available |
| Return height | 30 mm; custom options available |
| Positioning accuracy | ±0.1 mm (supplier stated) |
| Control | Programmable microcontroller + touchscreen |
| Feeding | Blow feed |
| Driver | High-speed brushless electric driver |
| Start method | TFS-201 foot switch or dual push buttons |
| Power supply | AC 220 V |
| Air supply | Source sheet states 4–5 MPa; unit appears anomalous and requires engineering confirmation |
| Rated power | 150 W |
Applications & options
Typical applications
- Small electromechanical assemblies
- Electronics and appliance components
- Single- or dual-point hardware fastening
- Repeat batches with stable workpiece geometry
Optional modules
Single-spindle configuration
For one fixed fastening point or sequential parts.
Dual-spindle configuration
For two stable points driven together; spindle pitch must match the workpiece.
Fixture
Design against geometry, datum and loading method.
Start and safety
Dual-hand start, guarding and interlocks can be assessed against station risk.
Resources & support
Prepare the project with the right inputs
Delivery and service
The single- and dual-spindle variants are presented on one series page. Provide screw samples, workpieces, pitch, target torque, loading method and takt before quotation. Supplier figures and the air-pressure unit must be verified in the technical agreement.
FAQ
Questions before selection
How should single and dual spindle be selected?
Choose single spindle for one fastening point or lower takt pressure. Evaluate dual spindle when two points have stable pitch and can be driven together.
Does 0.8–1 second include loading?
No complete station-cycle guarantee is implied. Handling, locating, torque and recovery time affect real output.
Is the air supply really 4–5 MPa?
That is how the source sheet is printed, but the unit clearly requires verification before procurement or connection.
What do the two later videos show?
Video 2 shows a single vertical driver and video 3 shows a dual-driver layout, so they are used as WSD-101DZ and WSD-102SZ operating references.
